Zhongwang 3D is a cost-effective 3D CAD/CAM integrated software with independent intellectual property rights under Zhongwang CAD/CAM software. It has the characteristics of strong compatibility, easy to learn and use. Introducing today is the sheet metal function in Zhongwang 3D.
As we all know, sheet metal parts have many applications in various industries, such as the automotive industry, home appliance industry, kitchen utensils industry and other industries. Whether the software has a certain sheet metal function, the product design and development of sheet metal will start. To a big impact, the following will give you a detailed introduction to the two sheet metal functions in the next 3D.
First, the complex shape, it is difficult to expand, how to draw, in order to make the sheet metal better
CAD engineers who have used sheet metal functions know that how to properly unfold and shape complex materials is our ultimate goal. In the process analysis of the new product quotation, in order to quickly analyze the cost, it is necessary to determine the layout and utilization of the material. After obtaining the customer's drawings or 3D models, quickly and accurately expanding the graphics is a prerequisite for analyzing the material utilization rate. So for the development of complex products, it is very important!
As shown above, how can CAD 3D be developed in the middle? If you follow the ordinary CAD drawing method, draw a diagonal line and rotate it, then it can't be expanded in Zhongwang 3D, but if you draw it with the following method, the effect is completely different. At present, this function is also obtained by many customers. Recognition.

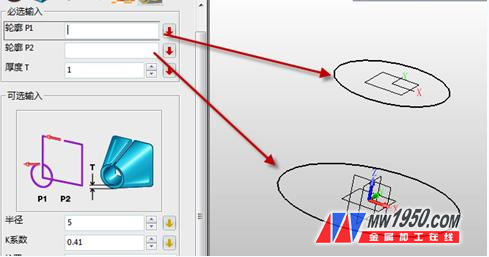

Step 1: You can draw two sketches on two datum planes.

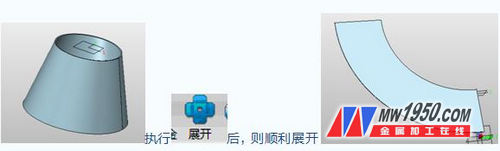

Step 2: Perform the following model for the stakeout sheet metal. After the expansion function is executed, it can be smoothly expanded, as shown below:
After the implementation, it will start smoothly
Second, the skills to draw sheet metal reinforcement

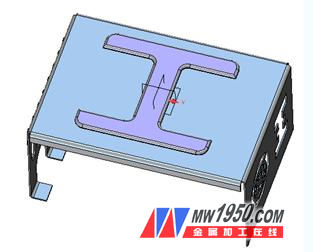

Sheet metal ribs can be divided into plane ribs, curved ribs and reinforcing sockets. As for the shape to be pressed, it depends on the shape and thickness of the sheet metal parts. There is no absolute rib in the sheet metal parts. Whatever it is, as long as the sheet metal stretch conditions are met, the shape of the rib structure can be determined according to the actual conditions of the equipment. Zhongwang 3D provides a variety of methods for drawing ribs in sheet metal, such as: blinds, depressions. And other functions, but in the face of more complex ribs, you can use the punching function, such as the following type of ribs, in the middle 3D, if the recess function is used, it is difficult to make such ribs, Can be applied under the modeling module
Function to achieve
Step 1: Draw an I-shaped sketch to stretch the thickness of the sheet metal to be strengthened

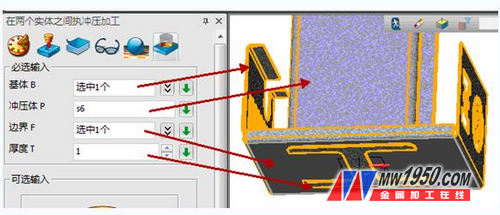

Step 2: Execute the punching command and select the corresponding parameters, then you can draw the corresponding rib shape.
Zhongwang 3D can not only draw the above ribs, but also for the following ribs.
Third, the use of sheet metal to pay attention to some details
When using Contour Flange, you can bend the bend to the final shape at a time with a more complex profile, but be aware that the outline must be tangent to the line and must not have a spline.
The operations of “cavityâ€, “chamfering†and “drawing†in modeling can be directly used on sheet metal, which can replace some sheet metal operations. It should be noted that the positioning of related shapes is indispensable, otherwise it is Gold can be mistaken when it is formed and unfolded.
Zhongwang 3D is a domestic high-end software integrating Zhongwang CAD\CAM. The functions of the sheet metal module are various and unique. This paper only introduces two kinds of practical and commonly used sheet metal functions. In addition, Zhongwang 3D also has more sheet metal functions, such as scribing and bending, adding flanges and other practical functions. Interested friends can learn more about CAD/CAM design skills at
